Ruisongbuild Industrial PPR Flow Control Valves High-Temperature Resistant

Description

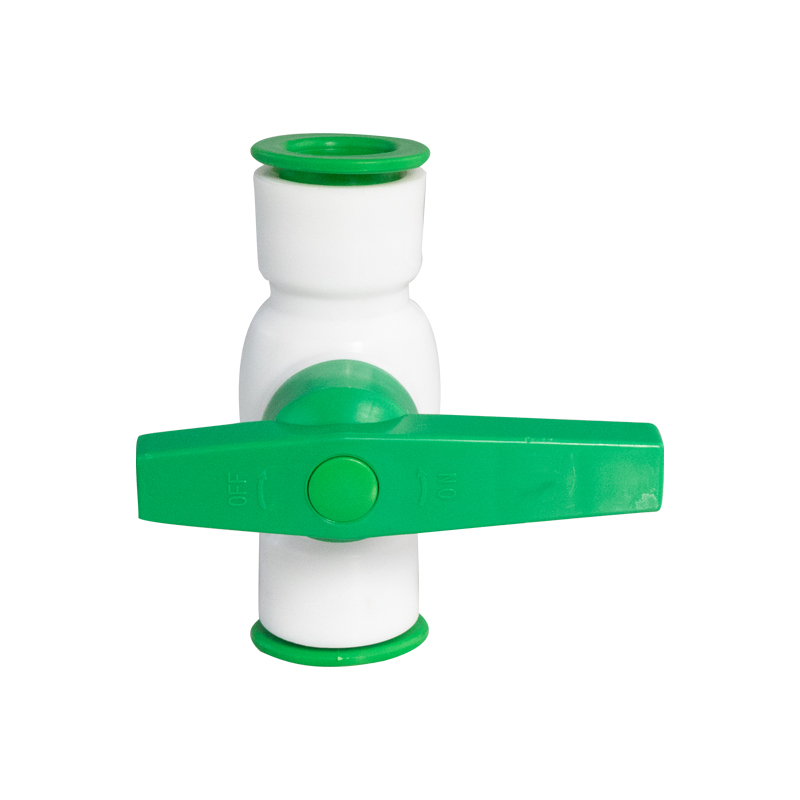

Ruisongbuild PPR Ball Valves: Precision Control for High-Pressure Systems

In any advanced PPR piping infrastructure, the valve is the most critical control point. Ruisongbuild’s PPR Ball Valves are injection-molded from 100% virgin Random Copolymer Polypropylene, ensuring the valve body maintains the same thermal expansion and chemical resistance properties as the rest of your pipeline. With a robust internal ball mechanism and a precision-seated sealing system, our valves provide a bubble-tight shut-off for domestic hot water, central heating, and industrial fluid networks.

Technical Specifications & Engineering Standards

• Material: 100% Virgin Random Copolymer Polypropylene (PPR).

• Standards Compliance: DIN 8077, DIN 8078, ISO 15874, EN 12162.

• Internal Seal: High-grade PTFE (Teflon) seats and EPDM O-rings.

• Pressure Ratings: PN25 (SDR6) – Capable of handling extreme surges.

• Operating Temp: Continuous performance up to 95°C (203°F).

• Flow Design: Full Bore / Full Port (Ensures zero flow restriction).

• Connection Method: Socket Heat Fusion (Creates a monolithic joint).

Ruisongbuild Integrated System Matrix (Internal Links)

For a flawlessly engineered and leak-proof installation, coordinate our ball valves with these compatible Ruisongbuild systems:

• Directional Routing: Pair these valves with our [PPR 90° Elbows] and [PPR 45° Elbows] for precise system layouts.

• Standard Infrastructure: Seamlessly connect to our high-pressure [PPR Couplings] and [PPR Equal Tees].

• Thermal Stability: For high-rise HVAC projects, use these valves with our [Fiberglass Reinforced PPR Pipes] to reduce thermal expansion.

• Space Optimization: Manage flow in tight spaces using these valves alongside our [PPR Crossover Bridge Bends].

• Mixed Systems: For transitioning to metal equipment, see our [PPR Male/Female Threaded Adapters].

Why Choose Ruisongbuild PPR Valves?

• Full-Port Architecture: Our valves feature an internal diameter equal to the pipe’s diameter, ensuring zero pressure drop and maximum energy efficiency for pump systems.

• Ergonomic Reinforced Handle: Designed for high-torque operation, our handles are reinforced to prevent snapping or stripping, even after years of infrequent use in harsh water conditions.

• Molecular Fusion Integrity: Thermal socket fusion merges the valve and the pipe into a single continuous piece, eliminating the need for mechanical seals that fail over time.

• Total Corrosion Immunity: PPR is chemically inert, meaning our valves will never rust, scale, or experience galvanic corrosion, even in aggressive water or industrial chemical environments.

Frequently Asked Questions

Q1: What is the benefit of a “Full Bore” PPR ball valve?
A: A full bore (or full port) valve means the hole in the ball is the same size as the pipe. This ensures that there is no flow restriction, which minimizes turbulence and pressure drop, allowing your water system to operate at peak efficiency.

Q2: Can Ruisongbuild PPR valves handle boiling water?
A: Yes. Our PPR ball valves are rated for constant operation up to 95°C, making them ideal for central heating systems, solar heaters, and industrial hot water transport.

Q3: Does the handle become brittle over time?
A: No. Ruisongbuild uses UV-stabilized, high-impact polymers for the handles to ensure they remain durable and easy to operate, even if installed in areas with indirect sunlight exposure.

Q4: Do I need to use Teflon tape on a fusion PPR valve?
A: No. For the socket ends, you use heat fusion to create a molecular bond. You only need Teflon (PTFE) tape if you are using one of our [Threaded PPR Adapters] to connect the valve to a metallic component.

Q5: Is the PPR ball valve suitable for drinking water?
A: Absolutely. All Ruisongbuild PPR fittings and valves are lead-free, non-toxic, and certified for potable water distribution, ensuring zero chemical leaching into your drinking supply.
