Plastic PVC CPVC UPVC PPH PVDF FRPP Flange Globe Valve

Description

Ruisongbuild Industrial Globe Valves: Master Precision in Flow Control

In complex chemical processing, simply turning a flow on or off isn’t enough. Ruisongbuild’s Plastic Flange Globe Valves are designed for applications requiring precise flow regulation (throttling) and frequent open-close cycling. Utilizing a linear-motion valve plug and a reinforced flanged design, our valves provide exceptional sealing integrity and durability in the most demanding industrial piping layouts.

High-Performance Material Selection Guide

• UPVC (Metric/ASTM): Excellent for general water treatment, deionized water, and mild acids (<60°C).

• CPVC (Heat Resistant): Optimized for high-temperature acids and commercial hot water plumbing (up to 95°C).

• PPH (Chemical Grade): Exceptional resistance to strong alkalis and abrasive industrial fluids (up to 90°C).

• PVDF (Extreme Performance): The gold standard for ultra-pure liquids and highly concentrated halogens/acids (up to 140°C).

• FRPP (Reinforced): Glass-fiber reinforced for maximum mechanical strength in large-scale industrial plants.

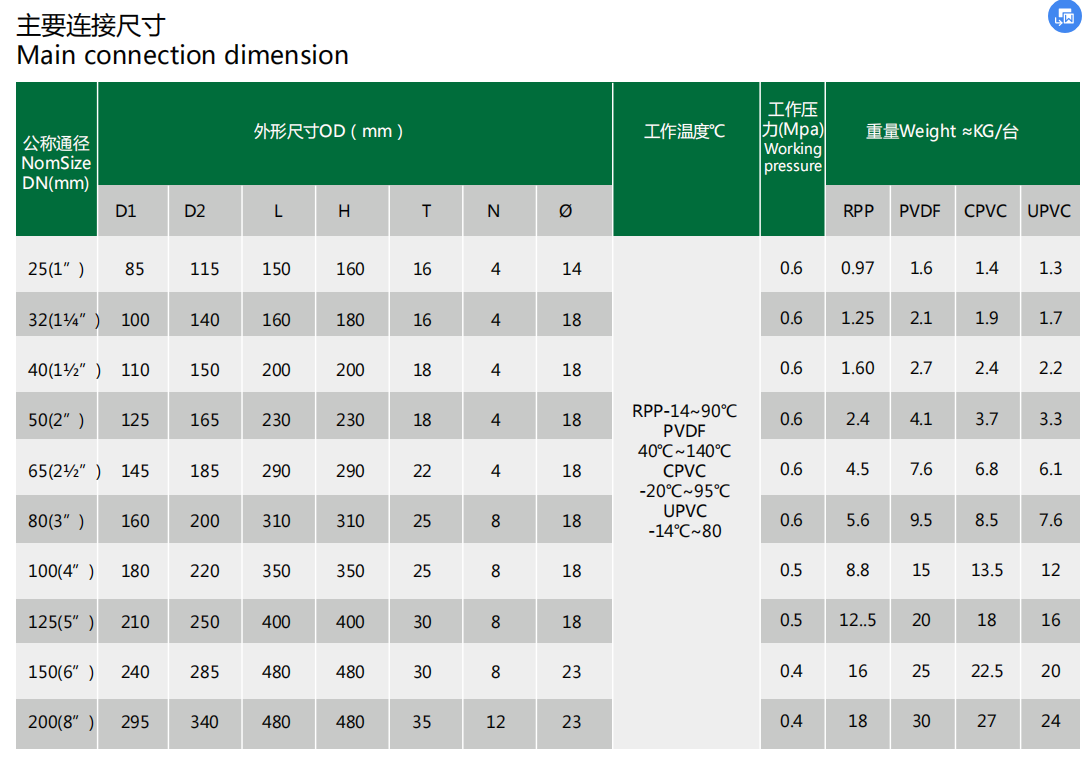

Technical Specifications

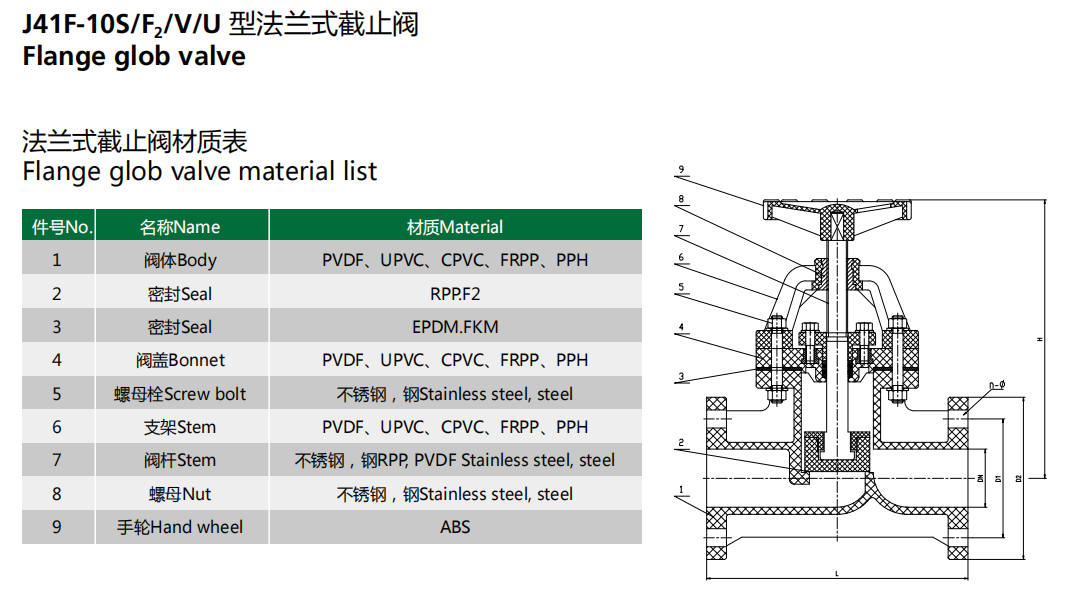

• Design Type: Globe (Stop) Valve, Flange Connection.

• Standard Compliance: Fully compatible with ANSI Class 150, DIN PN10/PN16, and JIS 10K.

• Sealing Material: High-grade PTFE (Teflon) or EPDM for maintenance-free sealing.

• Size Range: DN25 (1″) up to DN200 (8″) .

• Operation: Manual handwheel (Reinforced for easy high-torque operation).
