Control heavy-duty fluid systems with Ruisongbuild’s DN200 (8″) SS304 flanged gate valves. Manufactured from premium CF8 (Stainless Steel 304), these Z41W-16P valves are engineered for medium-pressure water, gas, and oil applications. Featuring a robust solid wedge design and PN16 rating, our flanged sluice valves ensure a bubble-tight seal and minimal pressure drop. The ultimate corrosion-resistant choice for municipal infrastructure, chemical plants, and industrial piping.
Description
Ruisongbuild DN200 SS304 Gate Valves: Engineered for Industrial Durability

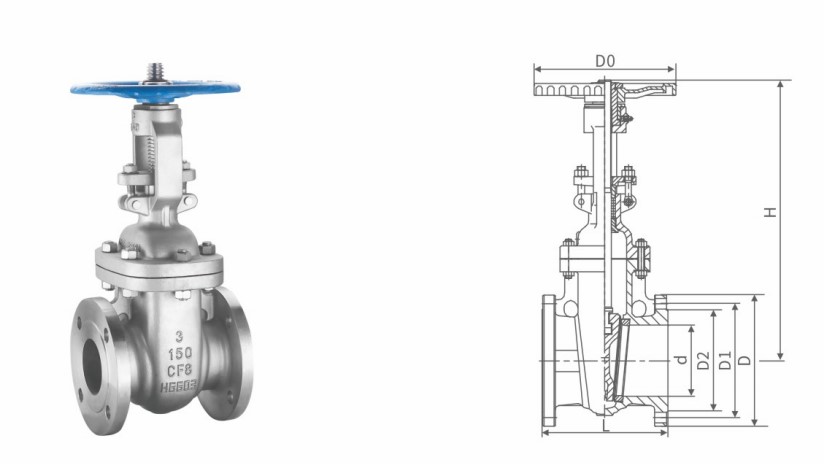

The Z41W-16P series is the cornerstone of reliable fluid isolation in large-diameter pipelines. At Ruisongbuild, our DN200 stainless steel gate valves are precision-cast using high-purity SS304 (CF8). Designed with an OS&Y (Outside Screw and Yoke) structure, these valves offer easy visual monitoring of the valve position and protect the stem threads from corrosive media, ensuring a 50-year service life in demanding environments.
Technical Specifications & Industrial Standards
-
Model Code: Z41W-16P (Standard Industrial Sluice Valve).
-
Body Material: High-Grade Stainless Steel 304 (CF8 / 1.4301).
-
Nominal Diameter: DN200 (8 Inch).
-
Nominal Pressure: PN16 (1.6 MPa) / Compatible with ANSI Class 150.
-
Design Standard: DIN 3352 / ASME B16.34.
-
Connection Type: RF (Raised Face) Flange per DIN/EN/ANSI.
-
Sealing Surface: Stainless Steel to Stainless Steel (Integral Seat).
-
Operation: Manual handwheel (Precision-geared for large sizes).
