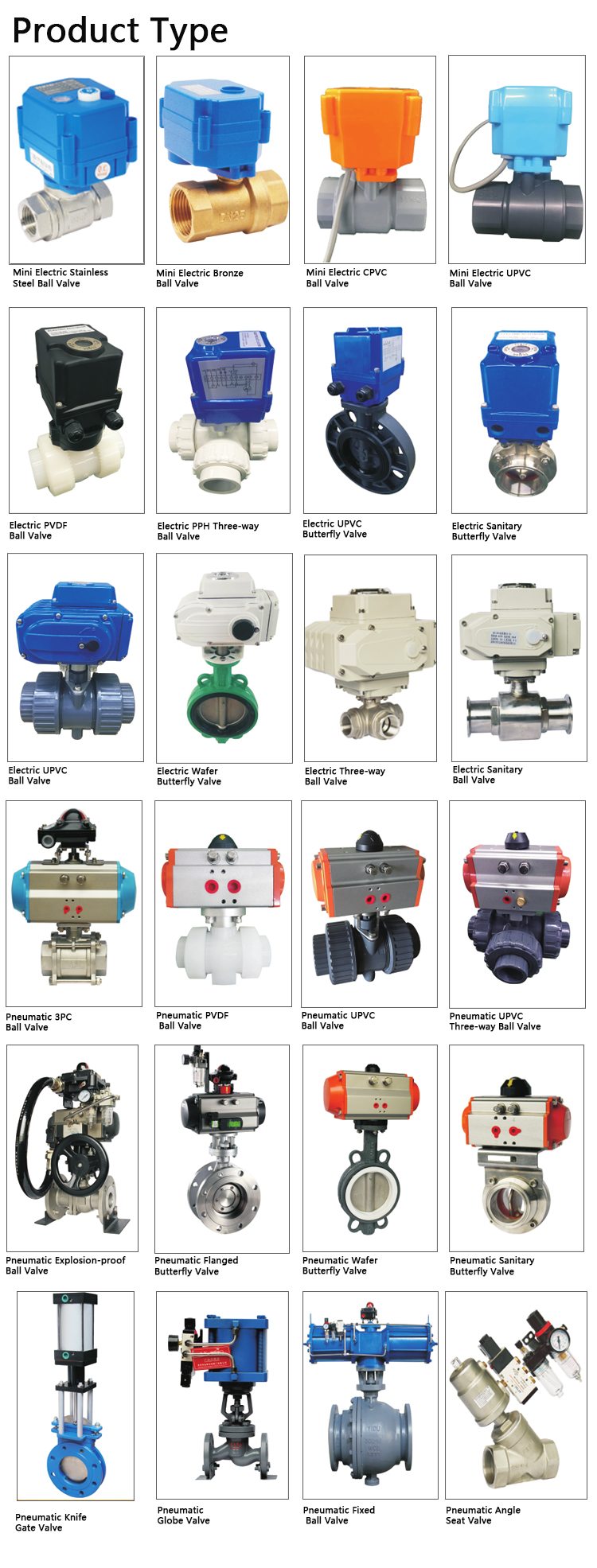

Electric and Pneumatic Ball Valves

Description

Ruisongbuild Actuated Ball Valves: Professional Automation for Harsh Environments

Manual operation isn’t always feasible in complex industrial layouts. Ruisongbuild’s Actuated Plastic Ball Valves bring intelligent automation to your corrosive fluid networks. By integrating high-torque actuators with our proven industrial valve bodies, we provide a seamless solution for remote monitoring and control, ensuring system safety and operational efficiency in chemical processing, semiconductor manufacturing, and smart irrigation.

Actuation Options: Electric vs. Pneumatic

• Electric Actuated (Motorized): Best for applications where compressed air is unavailable. Supports AC/DC voltages, manual override, and features IP67 waterproof housing. Ideal for precise on/off control.

• Pneumatic Actuated (Air-Operated): Engineered for rapid cycling and hazardous environments. Available in Double Acting or Spring Return (Fail-safe) models. Highly durable and cost-effective for large-scale automation.

Technical Specifications

• Valve Body Materials: UPVC, CPVC, PPH, PVDF.

• Sealing: Premium PTFE seats with Viton (FPM) or EPDM O-rings.

• Electric Actuator: 12V/24V DC, 110V/220V AC; IP67 enclosure; Signal feedback (4-20mA optional).

• Pneumatic Actuator: 3-8 bar air pressure; ISO 5211 mounting pad; Limit switch box options.

• Size Range: 1/2″ to 4″ (True Union); up to 12″ (Flanged).

• Standard Compliance: ISO, ANSI, DIN, JIS.
