FRPP PVDF CPVC UPVC PPH PVC Ball Check Valve, Non-Return Valve

Description

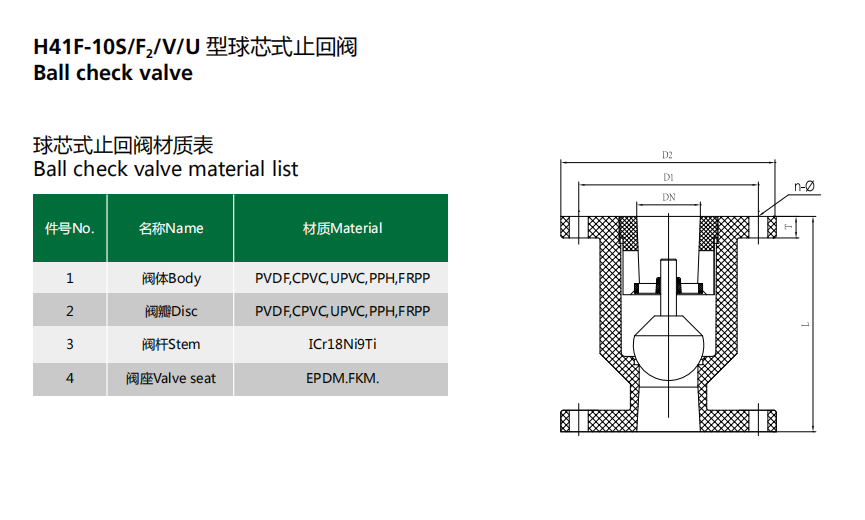

Ruisongbuild Industrial Ball Check Valves: Precision Backflow Prevention

The Ball Check Valve is a reliable and cost-effective non-return solution for high-purity and corrosive fluid systems. At Ruisongbuild, our valves utilize a gravity-driven or flow-driven ball mechanism. When flow moves in the desired direction, the ball is pushed aside; when flow reverses, the ball is forced back against the seat, creating a perfect seal. With zero metallic parts and a choice of five high-performance polymers, our valves are the professional choice for acids, alkalis, and ultrapure water transport.

Advanced Material Matrix: Engineered for Every Environment

• UPVC (Metric/ASTM): Cost-effective for general water treatment and cooling loops (<60°C).

• CPVC (High-Temp): Optimized for hot acids and chlorinated water systems (up to 95°C).

• PPH (Industrial): Exceptional impact strength and chemical resistance for process piping (up to 90°C).

• PVDF (Ultra-Pure): The peak of chemical resistance for semiconductor and pharma industries (up to 140°C).

• FRPP (Glass-Fiber Reinforced): Enhanced structural rigidity for high-pressure industrial wastewater.

Technical Specifications

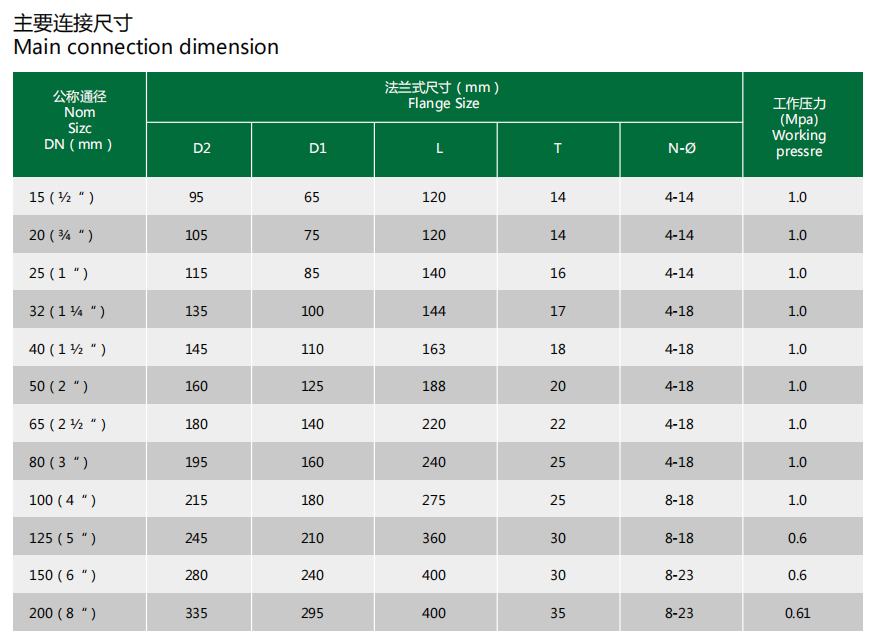

• Design: Ball Type, True Union (Double Union) or Flanged Ends.

• Size Range: DN15 (1/2″) to DN200 (8″) .

• Sealing Elements: FPM (Viton) or EPDM for superior chemical compatibility.

• Pressure Rating: PN10 (150 PSI) or PN16.

• Installation: Suitable for both horizontal and vertical (upward) orientations.
